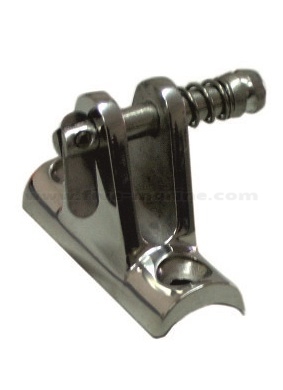

Stainless Steel 316 Bimini Top Base – Quick-Release Pin or Screw Mount

The Stainless Steel 316 Boat Canopy Base with Pin or Screw is a high-grade marine fitting designed to securely mount bimini tops and boat canopies on a variety of vessels – from RIB inflatables and dinghies to motorboats and yachts. Its marine-grade AISI 316 stainless steel construction guarantees longevity and reliability even under constant exposure to saltwater. The concave base design, combined with an EPDM rubber insert, ensures a snug grip on curved surfaces such as inflatable tubes or round rails, preventing slippage and protecting the boat’s finish from damage.

Two Available Versions:

• Fixed Screw Version: This model uses a locking screw (bolt) to secure the canopy frame in place. It’s ideal for installations where the bimini top remains on the boat for extended periods. The screw provides an extremely sturdy and vibration-resistant connection, making it perfect for larger canopies or high-speed cruising where a rock-solid attachment is required.
• Quick-Release Pin Version: This variant features a removable spring-loaded pin that allows the canopy frame to be detached in seconds. It is recommended for situations where you need to frequently fold down or remove the bimini – for example, when trailering the boat, navigating under low bridges, or during very windy conditions when the cover must be taken down quickly. The pin locks securely during use, yet can be pulled out easily for instant release of the canopy supports.

Usage and Installation Recommendations:
This bimini deck hinge base (codes 00671-1 / 00671-2) is highly versatile and can be mounted on both hard and inflatable surfaces. For installation on fiberglass decks, gunwales, or metal rails, use the provided stainless steel screws to fix the base firmly in place. For inflatable boats, the concave base can be glued onto the PVC or Hypalon tube using a proper marine adhesive; the EPDM pad on the bottom helps create a strong bond and seal on the curved tube surface. In both scenarios, you gain a dependable anchor point for your sunshade that withstands wind loads and motion. The polished finish not only enhances the appearance of your boat, but also resists salt buildup – a quick rinse with fresh water is all that’s needed to keep it shining.

By equipping your boat with this canopy base, you ensure quick and easy deployment of a bimini or sunshade whenever needed. The quick-release pin model is especially convenient for smaller boats (around 3–5 m) or any vessel where the top is frequently removed, while the screw-lock model is favored for larger boats (5 m and above) or more permanent canopy setups that demand maximum stability. Whichever version you choose, you’ll receive a top-tier product that enhances your boating experience by providing shade and protection with minimal hassle. Enjoy the peace of mind that your bimini top is firmly secured by a professional-grade fitting, yet can be detached or stowed away at a moment’s notice when necessary.
