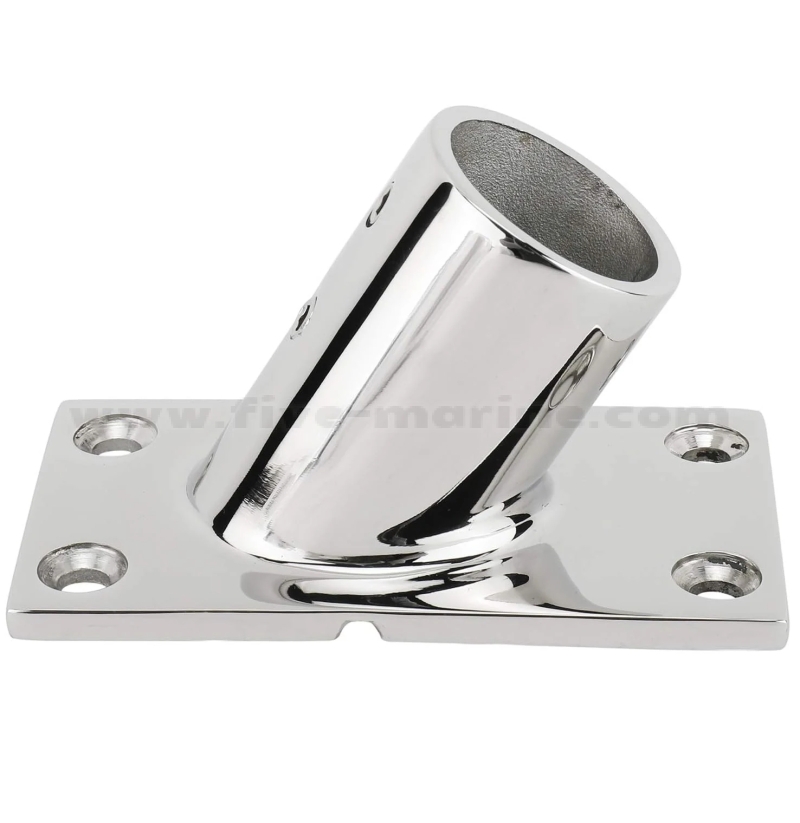

60° Angled Rectangular Rail Base – Stainless Steel (AISI 316)

Code:

02424-22

Angled stainless steel rail base (60° tilt) with a rectangular flange. Perfect for mounting railing posts or bimini support poles on sloped surfaces. Made of marine-grade AISI 316 steel with a mirror polish for durability and style. Fits 22 mm or 25 mm diameter tubes.

Key Features:

Angled Design: 60° tilt built into the base – ideal for sloped deck edges, cabin sides, or transoms where vertical (90°) bases won’t align with the railing.
Rectangular Flange: Elongated base (about 8 x 4.5 cm) ensures a strong hold and spreads the load. The rectangular shape resists twisting forces better on a slope and often accommodates two mounting screws or bolts.
Premium Steel: Constructed from AISI 316 stainless steel, offering marine-grade corrosion resistance. The entire piece is mirror polished for a premium look and easy cleaning.
Tube Fit: Available for Ø22 mm and Ø25 mm tubes – the angled socket is precision-machined to grip the pipe securely at the correct angle. A side grub screw is included to lock the tube in position once installed.
Applications: Suitable for railing stanchions, grab rails, bimini top braces, or any custom tubing installation at a 60° angle. Provides a stable pivot or attachment point that matches the geometry of your boat.

Diameter: 22 mm 25 mm

Price: 25⁰⁰лв. €12⁷⁸

Add to wishlist

In stock

0.170 Kgs

Rate this product

Quick Buy

Just 4 fields to fill in

We will contact you to finalize the order

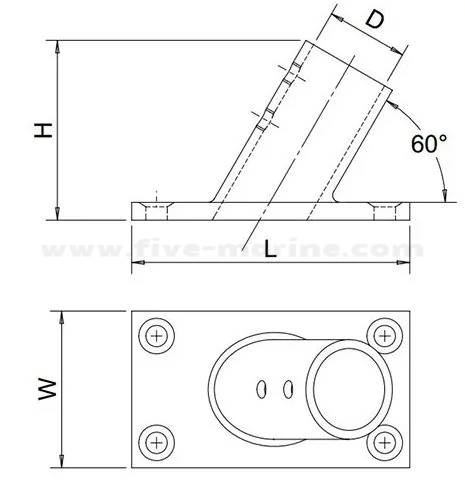

Solve tricky mounting angles with this 60° rectangular rail base made from polished AISI 316 stainless steel. This fitting is designed for situations where your railing or canopy support needs to attach at an angle – for example, on a sloping gunwale or coaming. The base has a rectangular shape (approx. 79 x 45 mm) that provides a wide footprint for stability. Its socket is angled at 60°, allowing a rail tube to lean outward or inward as needed while the base itself sits flush on the surface. Two counter-sunk holes at each end of the rectangle make installation straightforward and secure.

Using this 60° rail base, you can mount handrails or canvas top supports on inclined surfaces without bending the tube or forcing alignment. It’s commonly used on cabin roof edges, windshield frames, or inclined bow rails where standard bases don’t fit. Boaters appreciate the thick-gauge steel and flawless finish – it stands up to years of UV exposure and salt spray. When tightening the two fastening screws, the base sits firmly, and your 22/25 mm rail will be locked in by the side screw for a wiggle-free result. Upgrade or refit your boat with this angled base to ensure every rail or strut is mounted securely and at the perfect angle.
